KSFM 102.5 FM Woodland, CA
(Sacramento Market - 50,000 Watts ERP)
HD Radio System Installation
Methodology: Separate Antenna
Fall 2006

All systems engineered and implemented by Timothy P. Whyte, CBRE.

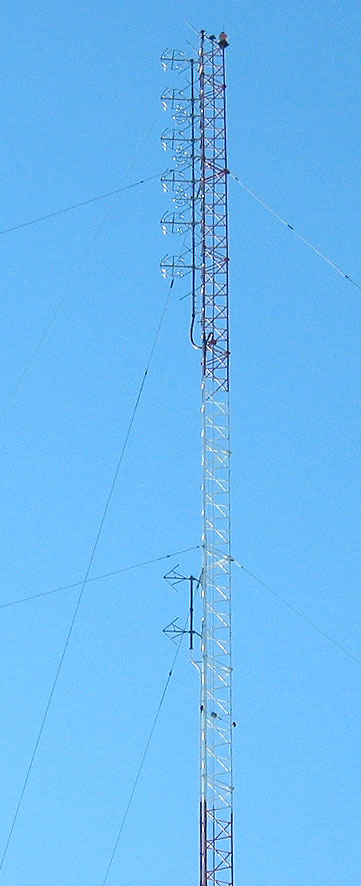

The existing KSFM main and auxiliary analog antenna systems. 6 bay main and 2 bay aux.

Removal of the existing 6 bay main analog antenna.

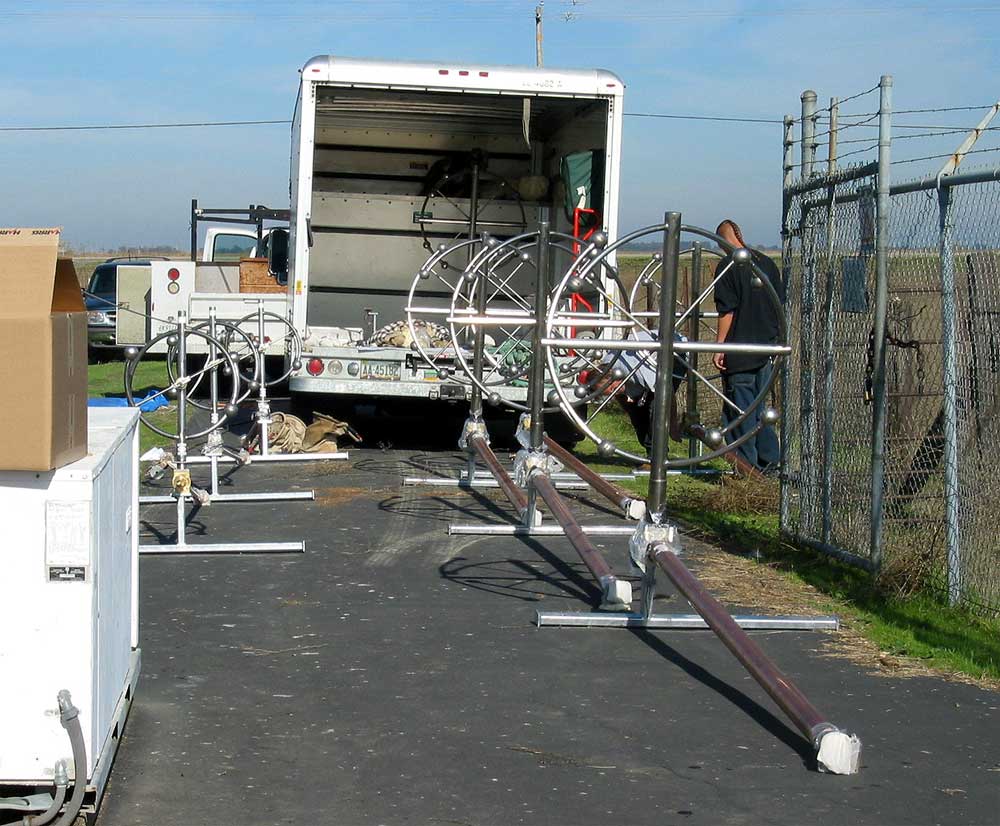

The new 6 bay main analog and 3 bay digital HD antennas.

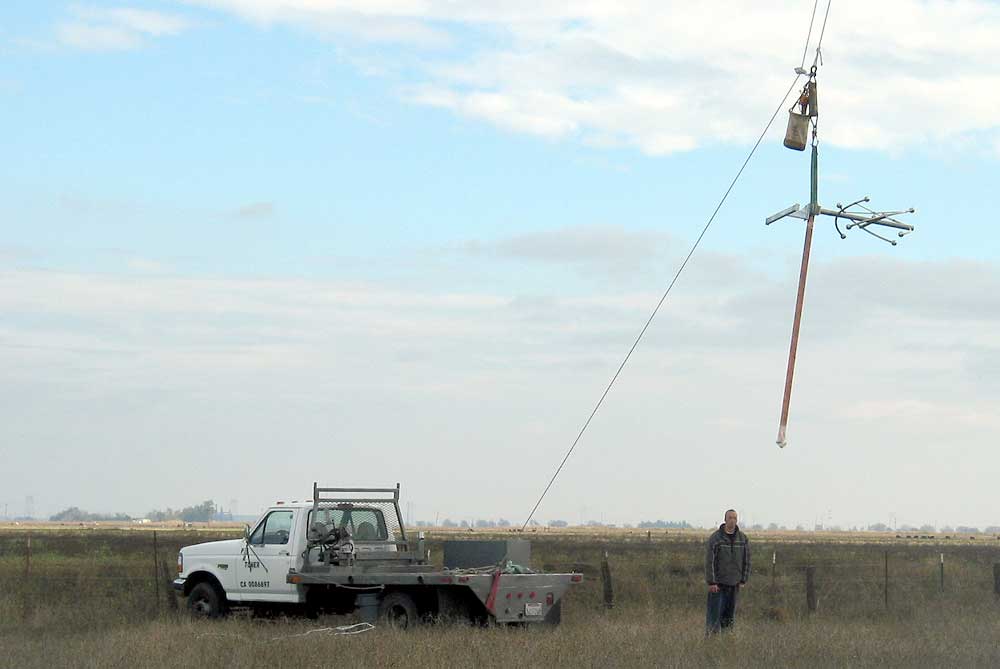

New elements being hoisted one at a time.

Slowly, the new antenna is assembled on the tower.

Some of the riggers at work.

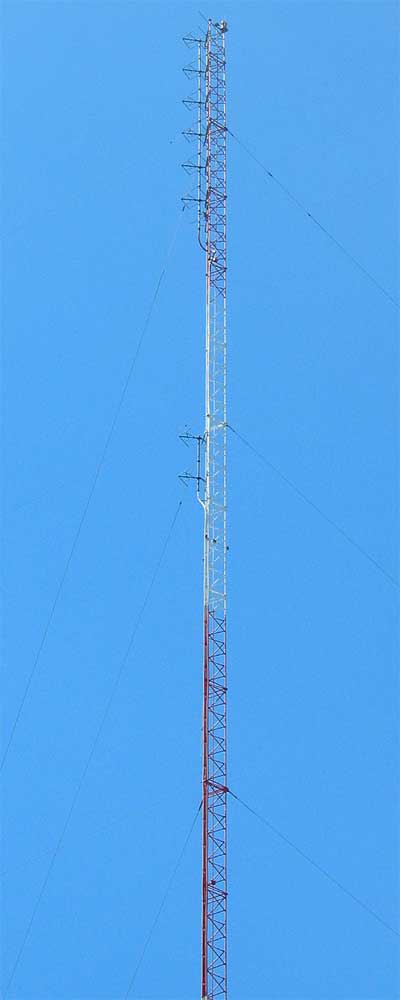

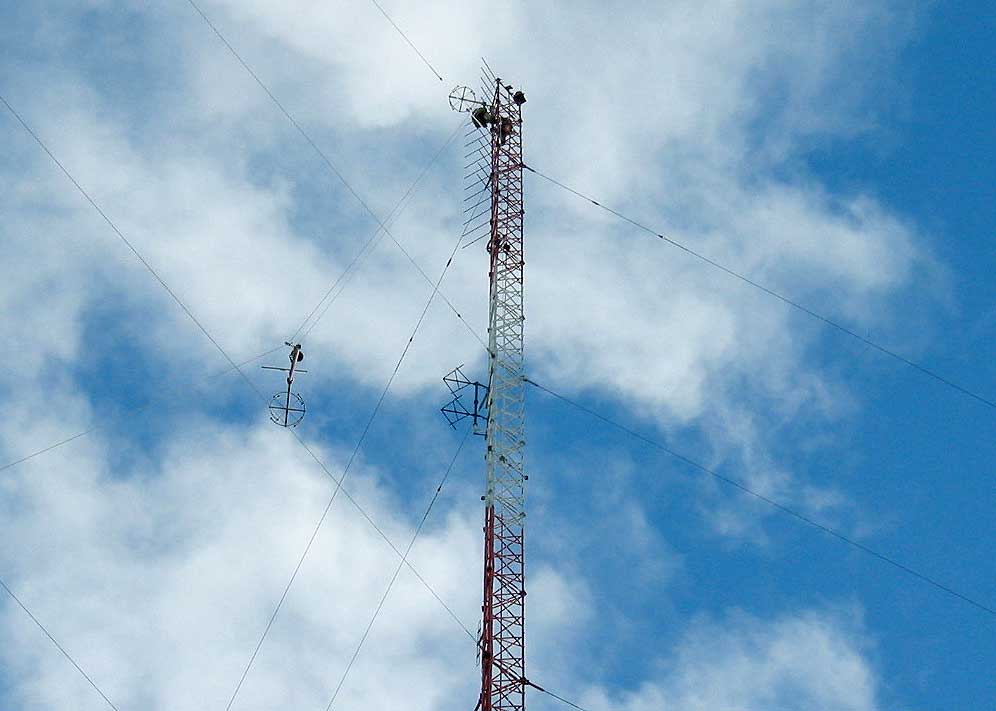

New main analog and digital HD antennas installed. Note the interleaved 3 bay digital HD antenna.

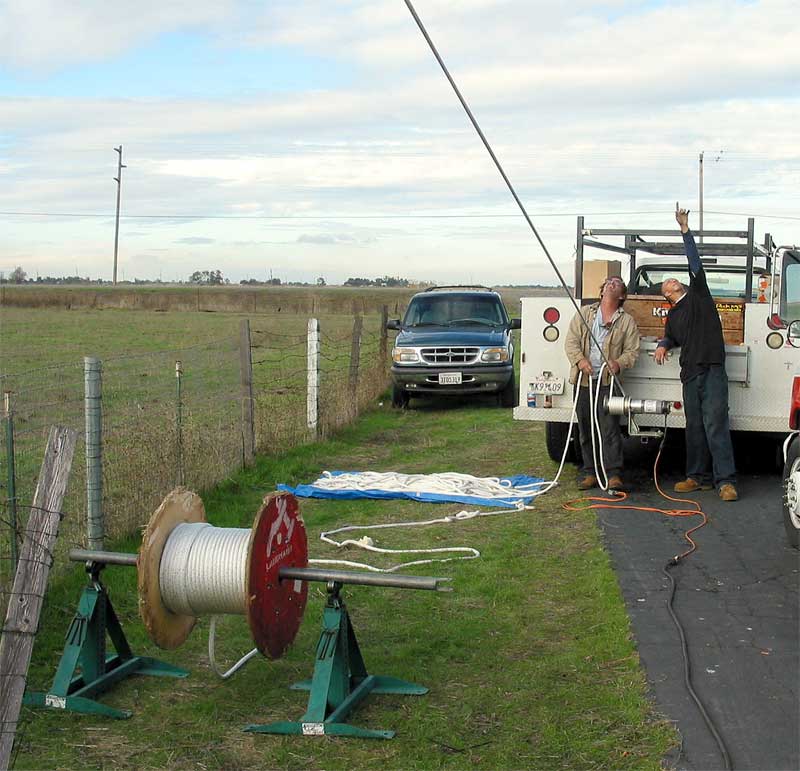

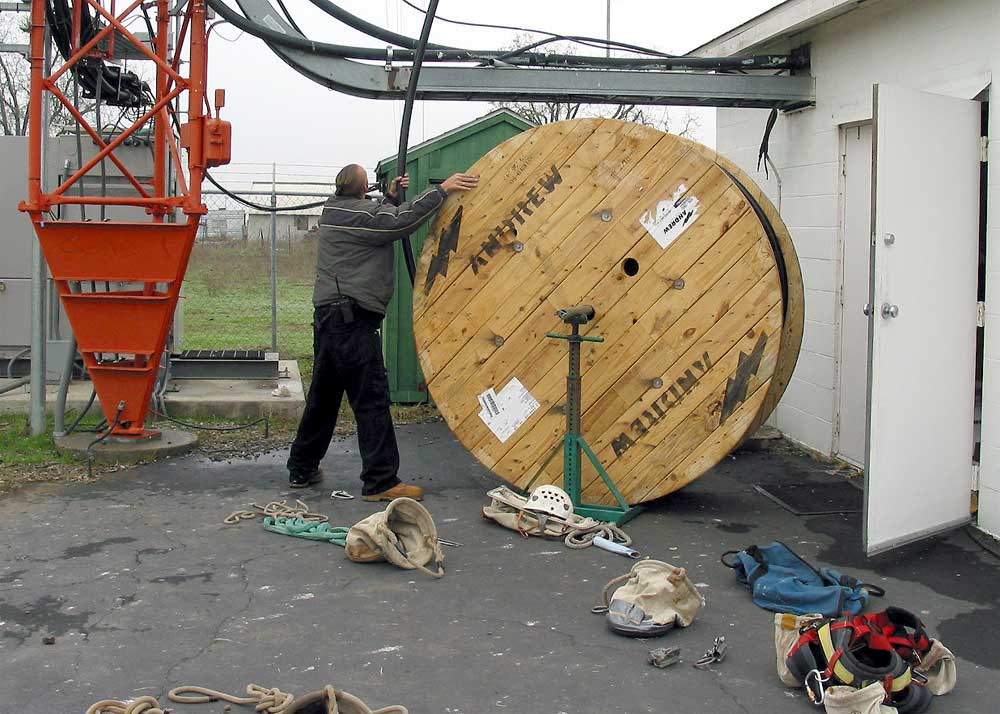

New 1 5/8" air dielectric coax for the digital HD antenna was installed.

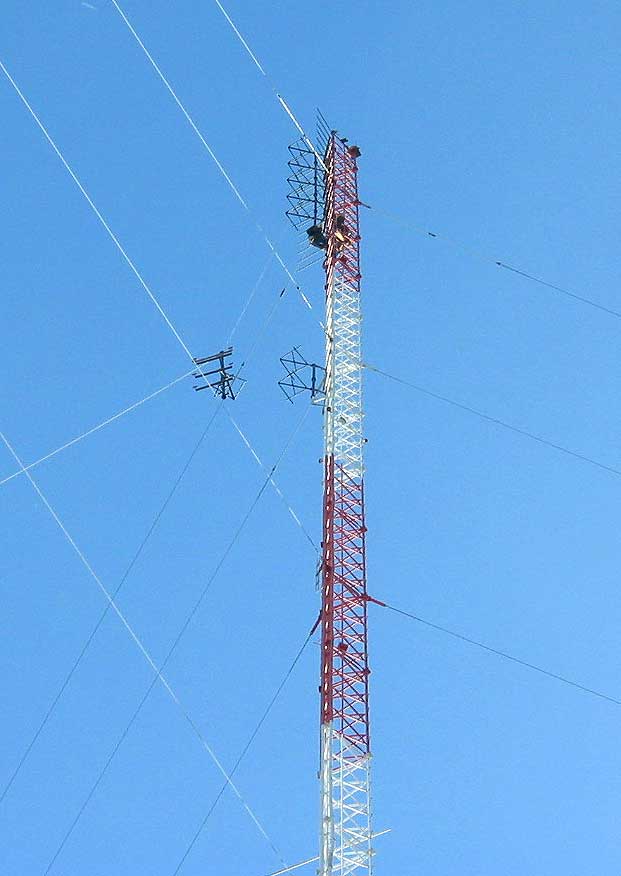

Weather did not always co-operate and caused several delays. There are riggers working on the antenna.

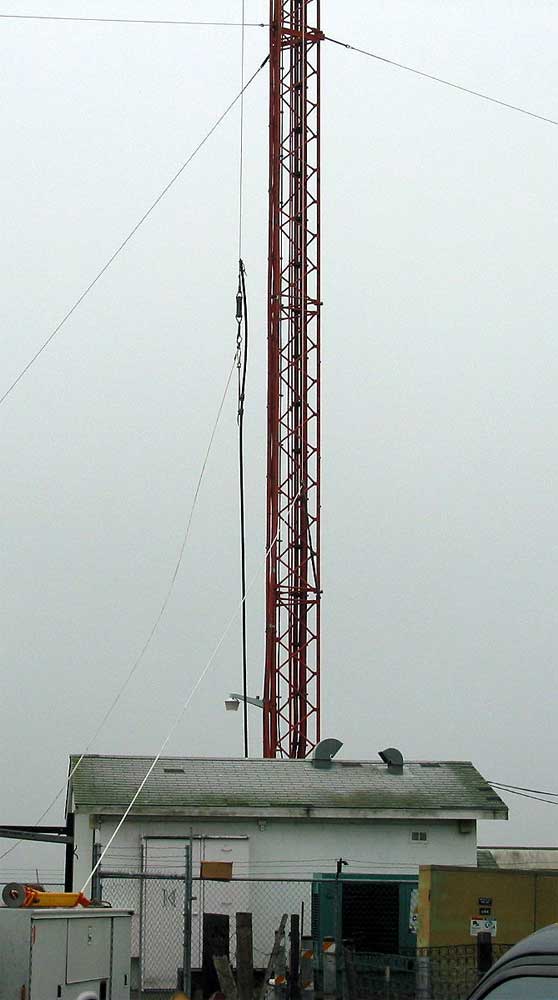

The new 1 5/8" coax for the 3 bay interleaved digital HD antenna.

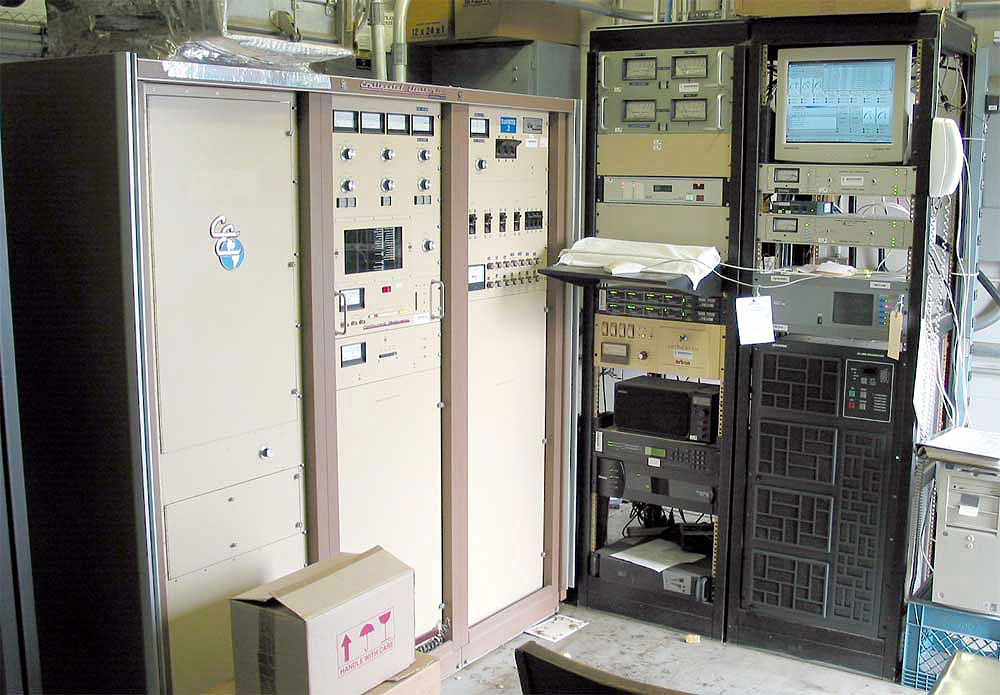

Inside the transmitter building. The Continental transmitter at left is the KSFM analog aux. In the right side equipment rack can be seen the Harris Flexstar exciter and Harris ZX-2000 HD transmitter. Digital HD TPO is 425 watts for 500 watts ERP or -20dBc. HD program is delivered by the Harris Intraplex T1 system near the bottom of the left rack.
